Double-sided permanent magnet chuck
Update time:2019-3-20 Hits:763



                   Double-sided permanent magnet chuck Sketch Map

Product Description: Double-sided permanent magnet chuck has magnetism on both sides, and has two magnetic switches, which can be used alone or on both sides. Double-sided permanent magnet chuck is made of two panels, two plate handlers, an intermediate, two sets of castor and corresponding size magnets. It has uniform suction and is suitable for grinding hard-to-hold workpieces, such as those of wire-cutting machine tools or spark machine tools. Workpiece is sucked and processed.

Product characteristics:
1) The double-sided permanent magnet chuck is the all-steel, all-abrasive and tightly polar permanent magnet chuck specially manufactured by our company.
2) It uses high performance NdFeB permanent magnet material, reasonable structure design, excellent material selection and process method.
3) Fastening, wear-resistant, corrosion-resistant, magnetic suction cup up to 100N/cm².
4) The magnetic force is uniform and the remanence is small. It can be widely used in surface grinder and guide grinder, spark machine, wire cutting and so on.
5) Holding thin and small workpieces for grinding, milling, scraping, filing and other processing. It is suitable for positioning of magnetic conducting workpieces which are not suitable for mechanical clamping.

Suggestions for use: There are two ways of installation (through hole/block). Please choose products according to the way of installation.

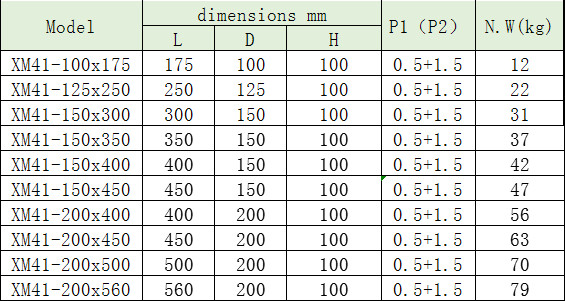

More specifications can be customized.
