Permanent Magnet Lifter
Update time:2019-3-26 Hits:792

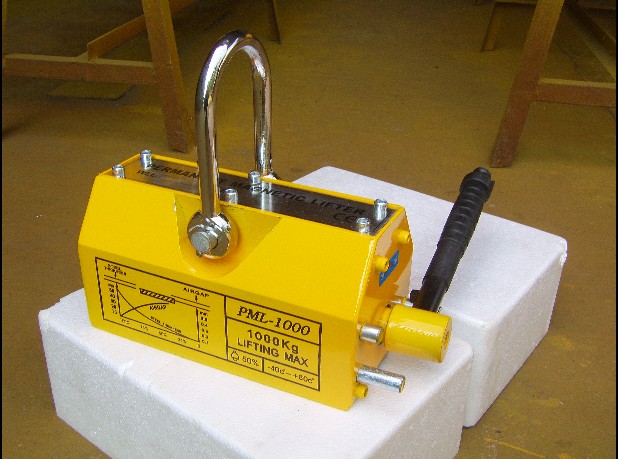

Lifting sucker

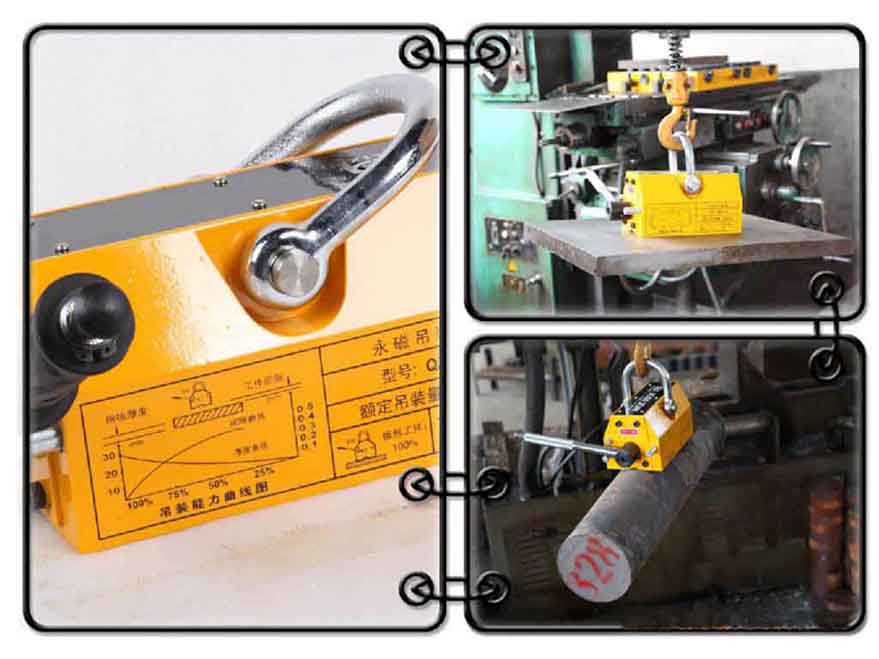

High-performance magnetic materials are used to make it smaller, lighter and stronger. Unique magnetic circuit design, remanence is almost zero. The maximum pull-out force is 3.5 times the rated lifting gravity. The handle switch is equipped with safety button, which can be operated by one hand and is convenient and safe. The bottom of the crane has a V groove design, which can hoist the corresponding round steel and steel plates. No electricity, permanent magnetic force, safe use. It can be widely used for lifting and transporting of steel, leveling of mechanical parts, and installation and transporting of various abrasives in the field.





Model

Rarde lifting
(kg)

          Dimension  mm

Max Breajawat Force
(N)

N.W(kg)

A

B

C

D

PML-100

100

100

82

80

126

3500

3

PML-300

300

180

100

120

150

10500

10

PML-600

600

246

145

142

236

21000

28

PML-1000

1000

280

165

164

284

32000

48

PML-2000

2000

370

210

205

426

65000

78

PML-3000

3000

458

286

264

521

85000

132



   .Above safety factor: 1 T and below are: 3.0-3.5 times, 1 T and above are 2.5-3.0 times.

Every crane manufactured by our company has passed the test of tension tester to ensure product quality.
